Key Features
- High tensile strength for heavy-duty applications
- Suitable for cracked & non-cracked concrete
- No drill hole cleaning required (M8–M24) for faster installation
- Immediate load application after installation
- Proven expansion clip ensures secure load transfer
- Suitable for dynamic loads (M16–M24)
- High seismic performance (Category C1 & C2)
- Fire resistance tested (RWS, ZTV, ETK approvals)
- Service life up to 120 years
- Variable anchorage depth for precise load adjustment
Technical Specifications
General Specifications:
- Anchor Type: Torque-controlled expansion bolt
- Material Options:
- Zinc plated steel (ZP)
- Stainless steel (R)
- High corrosion resistant steel (HCR)
- Diameter Range: M6 to M24
- Installation Type:
- Through fixing
- Pre-positioned
- Stand-off installation
Performance & Load Capabilities:
- High load-bearing capacity even under dynamic loads
- Reduced number of anchors required due to high tensile strength
- Suitable for low-cycle dynamic applications like machinery and moving loads
Approved Base Materials
- Concrete C20/25 to C50/60 (cracked & non-cracked)
- Concrete C12/15 to C80/95 (classified use)
- Steel fiber reinforced concrete
- Solid sand-lime brick (approved variants)
Certifications & Approvals
- ETA (European Technical Assessment)
- ICC Approval
- Seismic Certification (C1 & C2)
- Fire resistance approvals (RWS, ZTV, ETK)
- Environmental Product Declaration (EPD)
Applications
- Structural steel fixing
- Railings & guard rails
- Cable trays & pipe routes
- Machinery & industrial equipment
- Lifts, conveyor belts & pumps
- Facade and bracket systems
- Staircases & ladders
- Timber and steel constructions
Working Principle

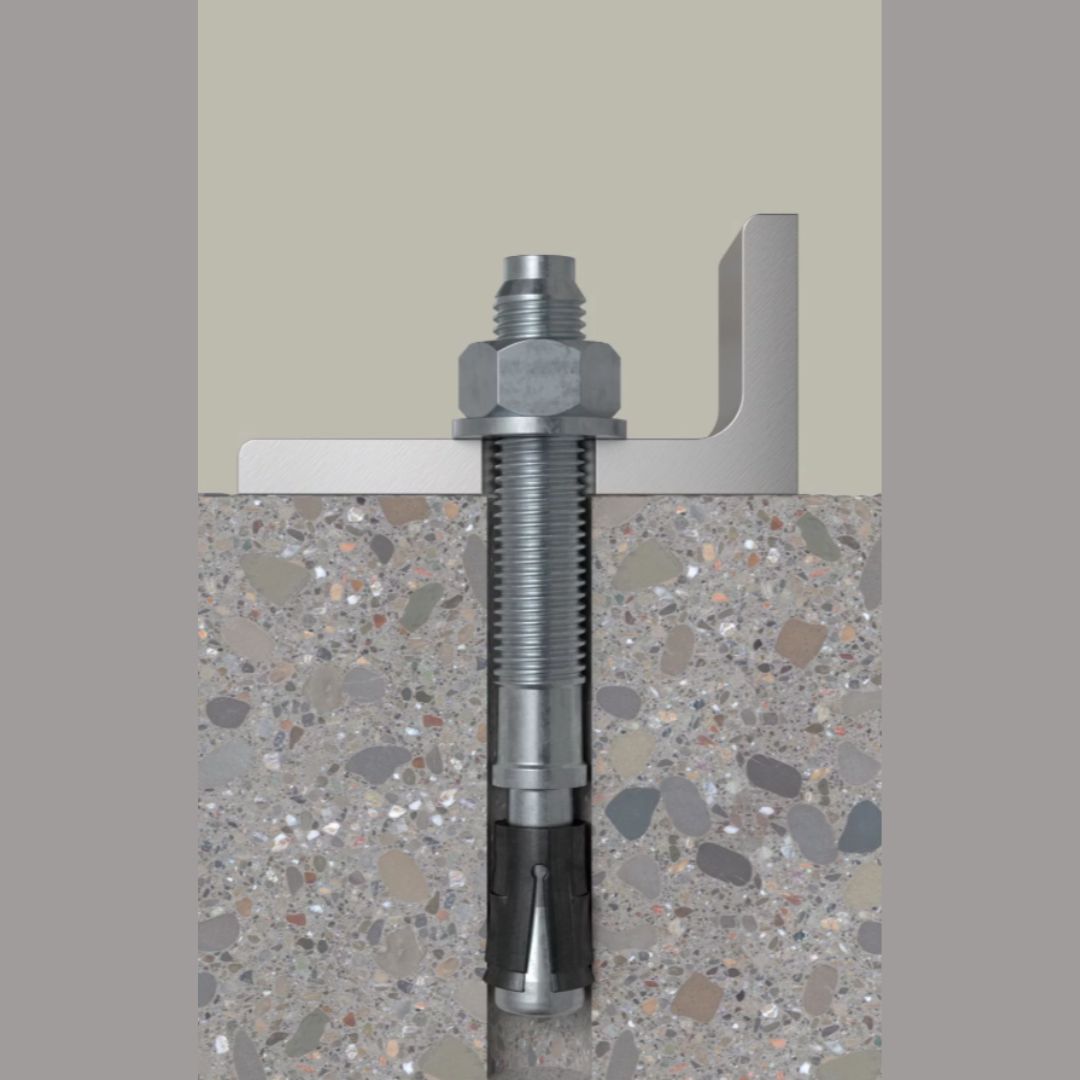

The FAZ II Plus operates using a torque-controlled expansion mechanism:
- Tightening the nut pulls the cone into the expansion sleeve
- Sleeve expands against the drill hole wall
- Creates strong frictional and mechanical interlock
- Ensures immediate and secure load transfer
Installation Benefits
- Faster installation (no hole cleaning needed for most sizes)
- Easy torque-controlled setting
- Suitable for series installation with setting tools
- Option to use filling disc (FFD) for seismic applications
- Compatible with injection mortar for dynamic load setups
